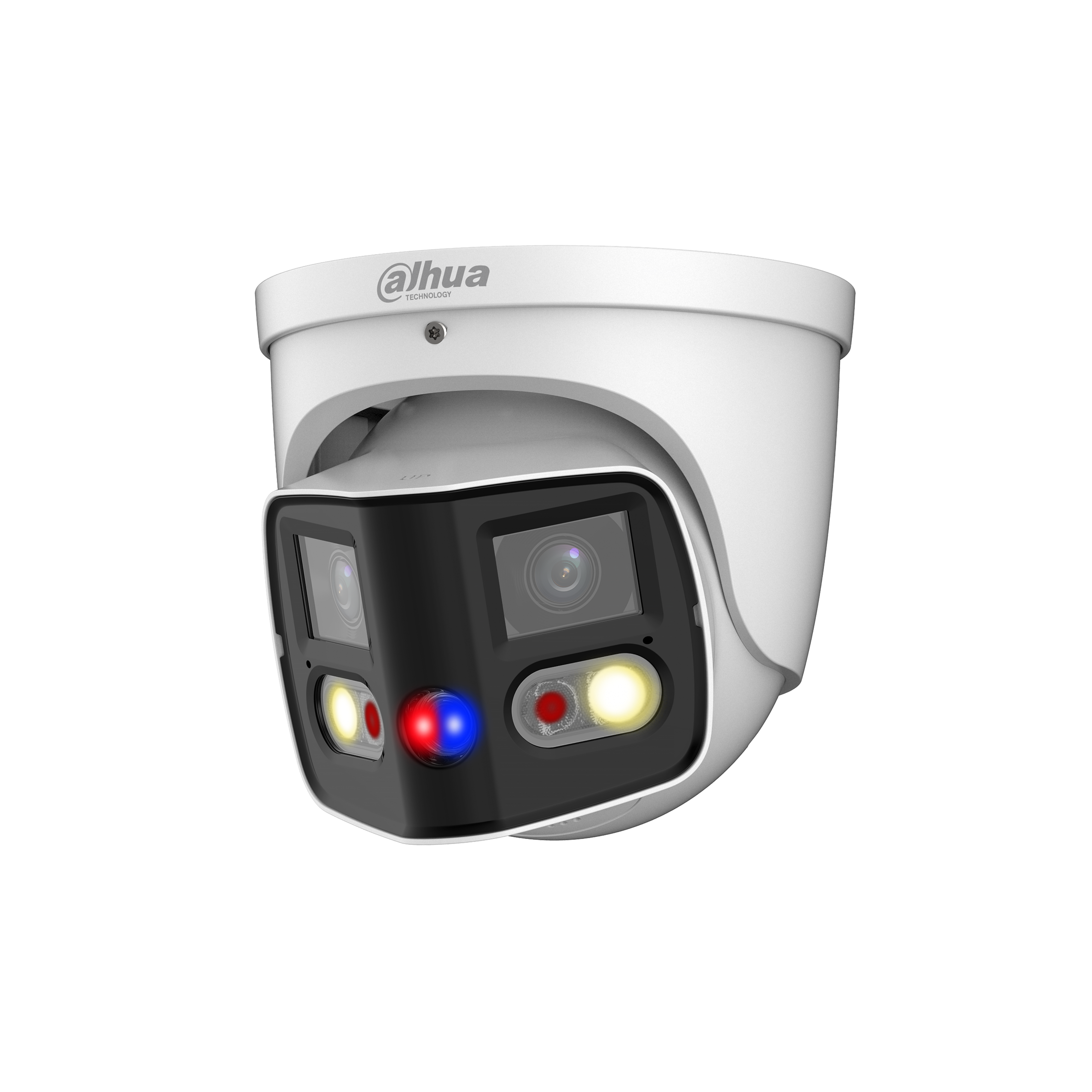

Dahua DH-PDW3849-A180-AS-PV-ANZ – 2x4MP TiOC Duo 180° Turret Camera

Dahua 2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera (model DH-PDW3849-A180-AS-PV-ANZ).

Key features

• Outputs 180° wide angle splicing image. · Outputs max. 8 MP (4096 × 1860)@20 fps.

• H.265 codec, high compression rate, ultra-low bit rate.

• Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.

• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

• WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.

• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.

Key specifications

• Image Sensor: Dual 1/2.7" CMOS

• Max. Resolution: 4096 (H) × 1860 (V)

• Illumination Distance: Up to 25 m (82.02 ft) (IR LED) Up to 20 m (65.62 ft) (Warm light)

• Lens Type: Fixed-focal

• Focal Length: 2.8 mm

• Field of View: Horizontal: 180°; Vertical: 86°

• IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection

• SMD: SMD 4.0

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

• Resolution: 8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368); 1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480)

• Built-in MIC: Yes, built-in dual Mic

• Network Port: RJ-45 (10/100 Base-T)
